单双梁桁架龙门吊-提梁机

详细说明：

产品参数表：Product parameter table:

产品名称 product name	通用门式起重机（龙门吊）Universal gantry crane (gantry crane)	品牌 brand	真牛 Really awesome
规格型号 Specification and model	MGH-10t/24m	用途 purpose	桥梁厂 Outdoor lifting
操作形式 Operation form	地面操作+遥控器Ground operation+remote control	结构structure	花架腿包厢主梁Flower rack leg private room main beam
外悬overhang	客户要求Customer requirements	升高rise	6m-15m
提升速度lifting speed	8m/min	大车速度Vehicle speed	20m/min
定额起重量Fixed lifting capacity	10t	轨距Track gauge	24m
主梁尺码Main beam size	中间断开Disconnect in the middle	车轮wheel	400
减速机Reducer	LH立式LH vertical	电机electrical machinery	YEJ2.2kw

产品性能介绍：

单梁龙门吊结构简单、制造安装方便、自重较轻，与双梁龙门吊相比，其整体刚度

相对较弱，通常当用户所需的起重量Q≤32t，且跨度S≤31.5m时，大多采用单梁龙门

吊。除此之外，单梁龙门吊又被分为MH型和MHL型，前者易于制造和安装，然而两条

支腿之间可使用的跨度空间相对较小；后者即MHL型的支腿采用倾斜或者弯曲设计，以

便有较大的横向空间使货物顺利通过龙门吊支腿。

Product Performance Introduction:

Single beam gantry crane has a simple structure, easy manufacturing and installation, and a lighter weight. Compared with double beam gantry crane, its overall stiffness

Relatively weak, usually when the lifting capacity Q required by the user is ≤ 32t and the span S is ≤ 31.5m, single beam gantry cranes are mostly used

Hanging. In addition, single beam gantry cranes are divided into MH type and MHL type. The former is easy to manufacture and install, while the other two are

The available span space between the legs is relatively small; The latter, namely the MHL type legs, adopt a tilted or curved design to

There is a large horizontal space for the goods to pass smoothly through the gantry crane legs.

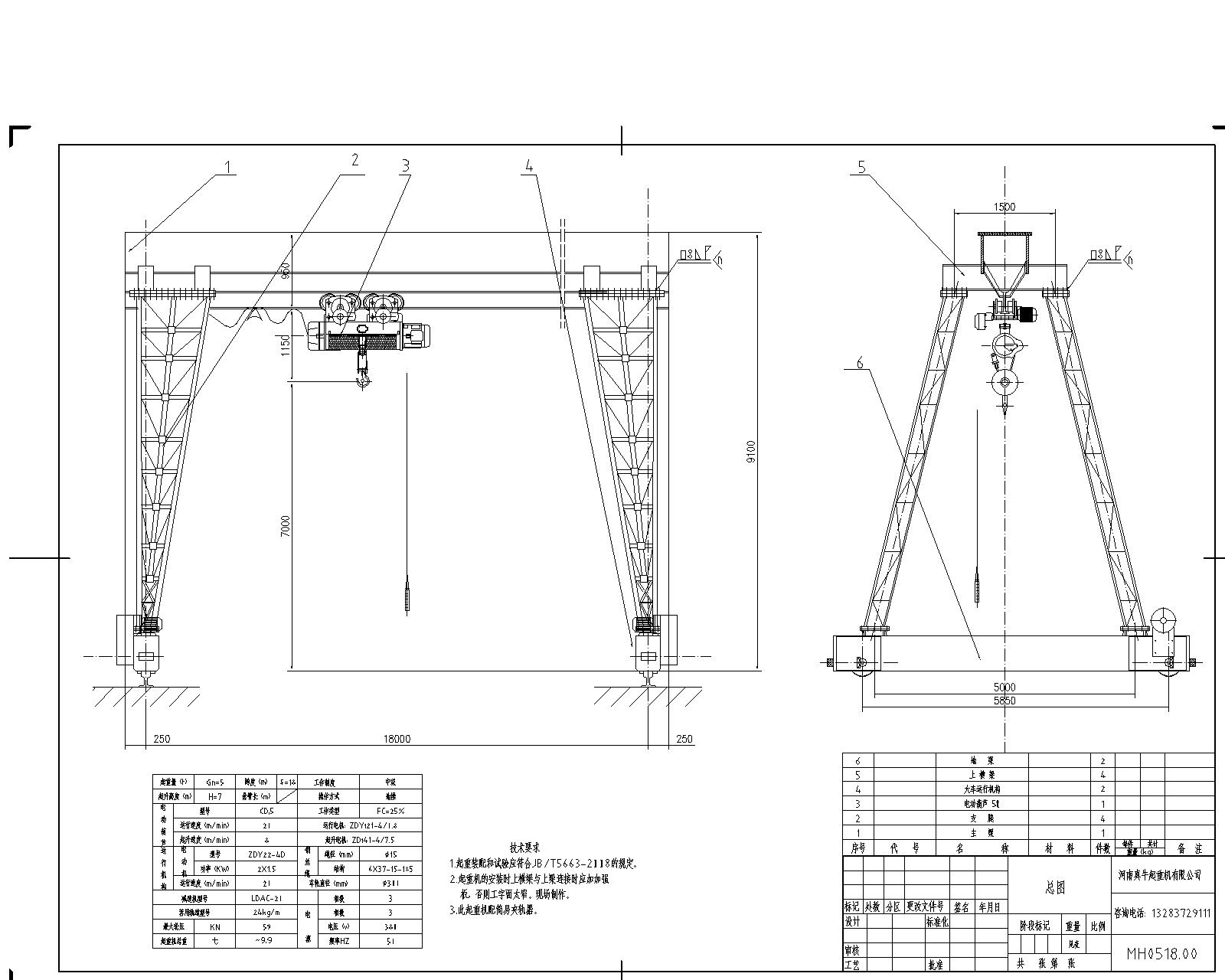

产品图纸Product drawings MH型5-18上包下花总图-Model
